Bevy制作拼图游戏 Day 6

UI事件

昨天的UI无法点击暂时通过给上层Node添加PickingBehavior::IGNORE,来解决。 现在我们给UI加上点击实现， 实现方式很简单，在生成的地方，再加一个Observe用来发生事件

p.spawn((
    UiImage::new(asset_server.load("icons/lamp.png")),
    Node {
        height: Val::Px(40.),
        margin: UiRect::axes(Val::Px(0.), Val::Px(5.)),
        ..default()
    },
    IdeaButton,
))
.observe(
    |_trigger: Trigger<Pointer<Click>>, mut commands: Commands| {
        commands.send_event(TogglePuzzleHint);
    },
);

全屏/取消全屏

在点击时， 将window的模式设置为全屏

.observe(
    |_trigger: Trigger<Pointer<Click>>, mut window: Single<&mut Window>| {
        window.mode = WindowMode::Fullscreen(MonitorSelection::Current);
    },
);

按下ESC取消全屏

fn exit_fullscreen_on_esc(mut window: Single<&mut Window>, input: Res<ButtonInput<KeyCode>>) {
    if !window.focused {
        return;
    }

    if input.just_pressed(KeyCode::Escape) {
        window.mode = WindowMode::Windowed;
    }
}

重构随机打乱

将随机打乱分为两种， 一种是全窗口内的随机打乱， 一种是将拼图块贴着窗口边


#[derive(Event)]
pub enum Shuffle {
    Random,
    Edge,
}

fn shuffle_pieces(
    mut shuffle_events: EventReader<Shuffle>,
    mut query: Query<(&Piece, &mut Transform)>,
    window: Single<&Window>,
    camera: Single<&OrthographicProjection, With<Camera2d>>,
) {
    for event in shuffle_events.read() {
        match event {
            Shuffle::Random => {
                for (piece, mut transform) in &mut query.iter_mut() {
                    let random_pos =
                        random_position(&piece, window.resolution.size(), camera.scale);
                    transform.translation = random_pos.extend(piece.index as f32);
                }
            }
            Shuffle::Edge => {
                for (piece, mut transform) in &mut query.iter_mut() {
                    let edge_pos = edge_position(&piece, window.resolution.size(), camera.scale);
                    transform.translation = edge_pos.extend(piece.index as f32);
                }
            }
        }
    }
}

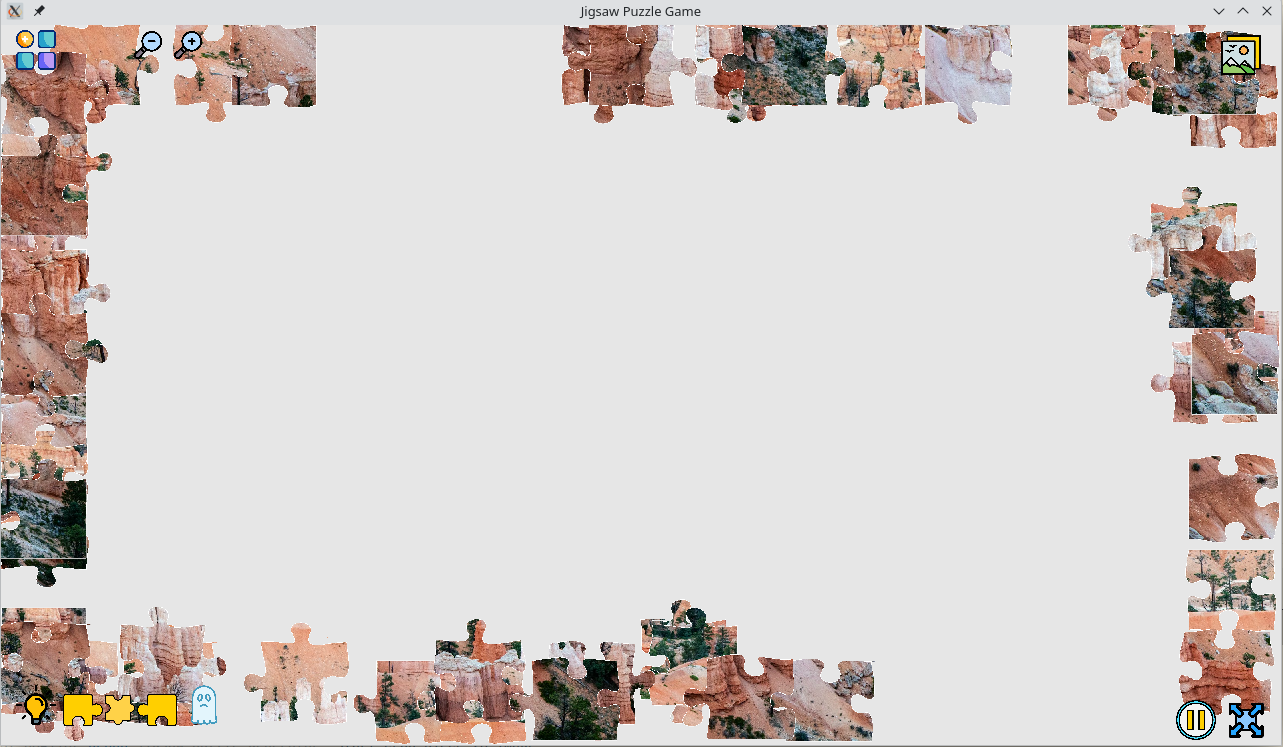

效果如下：

提示匹配拼图

将未合成的相邻两块拼图置为选中状态


#[derive(Event)]
pub struct TogglePuzzleHint;

fn handle_toggle_puzzle_hint(
    mut event: EventReader<TogglePuzzleHint>,
    selected_query: Query<Entity, With<Selected>>,
    piece_query: Query<(Entity, &Piece, &MoveTogether), Without<Selected>>,
    mut commands: Commands,
) {
    for _ in event.read() {
        for entity in selected_query.iter() {
            commands.entity(entity).remove::<Selected>();
        }
        let mut first_piece = None;
        let mut first_entity = None;
        let mut second_entity = None;
        'f1: for (entity, piece, move_together) in piece_query.iter() {
            if move_together.len() > 0 {
                continue 'f1;
            }
            first_piece = Some(piece);
            first_entity = Some(entity);
            break 'f1;
        }
        if let Some(first_piece) = first_piece {
            'f2: for (entity, piece, move_together) in piece_query.iter() {
                if move_together.len() > 0 {
                    continue 'f2;
                }
                if first_piece.beside(&piece) {
                    second_entity = Some(entity);
                    break 'f2;
                }
            }
        }
        if let (Some(first_entity), Some(second_entity)) = (first_entity, second_entity) {
            commands.entity(first_entity).insert(Selected);
            commands.entity(second_entity).insert(Selected);
        }
    }
}

找出第一个单个的拼图， 然后找到它任意一个旁边的拼图，将他们都加入Selected组件

切换显示全部拼图和只有边缘的拼图


#[derive(Event)]
pub struct ToggleEdgeHint;
fn handle_puzzle_hint(
    mut event: EventReader<ToggleEdgeHint>,
    selected_query: Query<Entity, With<Selected>>,
    mut piece_query: Query<(&Piece, &mut Visibility), Without<Selected>>,
    mut commands: Commands,
    mut show_all: Local<bool>,
) {
    for _ in event.read() {
        for entity in selected_query.iter() {
            commands.entity(entity).remove::<Selected>();
        }
        *show_all = !*show_all;

        if *show_all {
            for (_, mut visibility) in piece_query.iter_mut() {
                *visibility = Visibility::Visible;
            }
        } else {
            for (piece, mut visibility) in piece_query.iter_mut() {
                if piece.is_edge() {
                    *visibility = Visibility::Visible;
                } else {
                    *visibility = Visibility::Hidden;
                }
            }
        }
    }
}

拆分系统

为了更好的游玩体验， 将系统状态拆分为 Menu(菜单), GamePlay(游玩)。 后续在Gameplay里还要拆分游戏状态。

/// 定义应用状态
#[derive(Clone, Copy, Default, Eq, PartialEq, Debug, Hash, States)]
pub enum AppState {
    #[default]
    Splash,
    MainMenu,
    Gameplay,
}

Menu和Gameplay部分可以参考官方项目示例代码

fn splash_setup(mut commands: Commands, asset_server: Res<AssetServer>) {
    let font = asset_server.load("fonts/MinecraftEvenings.ttf");
    let text_font = TextFont {
        font: font.clone(),
        font_size: 50.0,
        ..default()
    };
    let text_justification = JustifyText::Center;
    // Display the logo
    commands
        .spawn((
            Node {
                align_items: AlignItems::Center,
                justify_content: JustifyContent::Center,
                width: Val::Percent(100.0),
                height: Val::Percent(100.0),
                ..default()
            },
            OnSplashScreen,
        ))
        .with_children(|parent| {
            parent.spawn((
                UiImage::new(asset_server.load("images/puzzle.jpg")),
                Node {
                    width: Val::Percent(100.0),
                    ..default()
                },
            ));

            parent.spawn((
                Text::new("Jigsaw Puzzle"),
                text_font.clone(),
                TextLayout::new_with_justify(text_justification),
                TextColor(BLACK.into()),
                Node {
                    position_type: PositionType::Absolute,
                    left: Val::Px(100.0),
                    bottom: Val::Px(100.0),
                    ..default()
                },
            ));
        });

    // Insert the timer as a resource
    commands.insert_resource(SplashTimer(Timer::from_seconds(3.0, TimerMode::Once)));
}

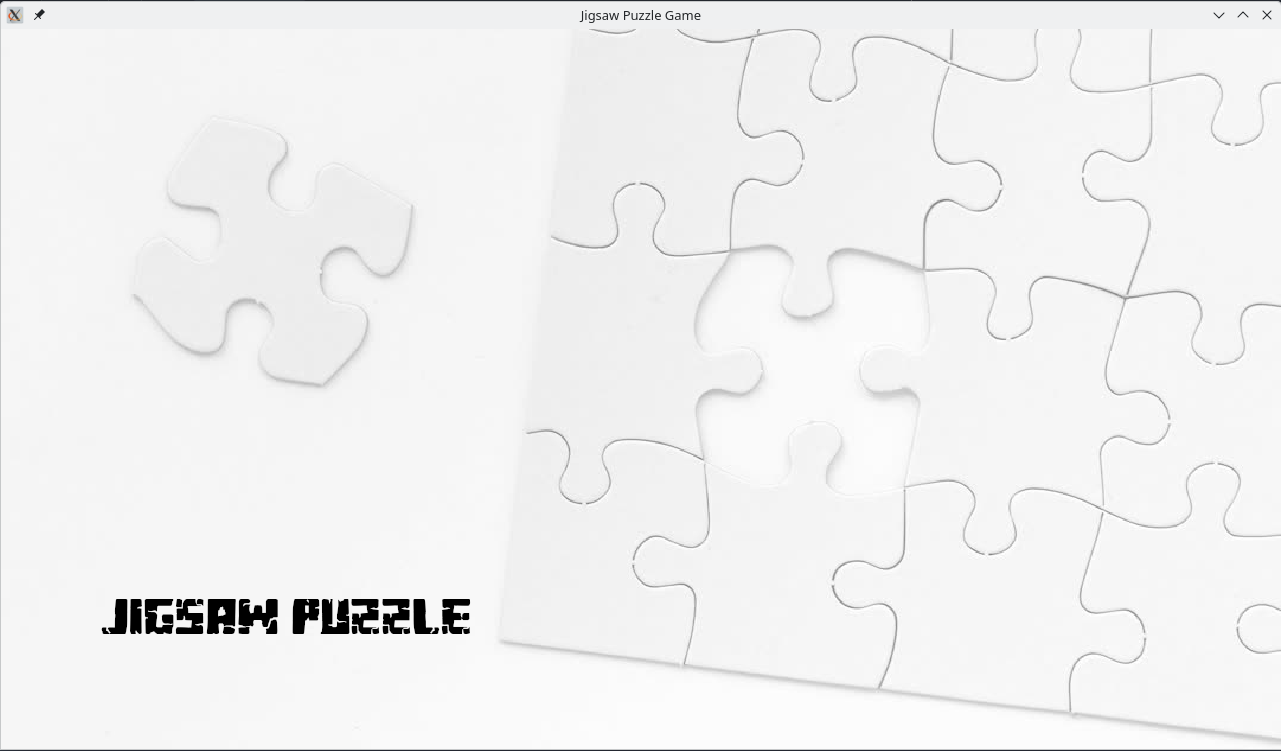

我们读取一张背景图片铺在窗口里，然后在左下角显示游戏名称， 注意这里文字位置用了绝对定位。 显示效果
