Bevy初始化

本文撰写时，Bevy正处于0.15发布周期，所以下面的代码以0.15版本为准初始化项目

bevy = { version = "0.15.0-rc.2", features = ["wayland"] }
jigsaw_puzzle_generator = { path = "jigsaw_puzzle_generator" }
rand = "0.8.5"

加载Plugin模块

pub struct PuzzlePlugin;

impl Plugin for PuzzlePlugin {
    fn build(&self, app: &mut App) {
        app.add_plugins(DefaultPlugins.set(WindowPlugin {
            primary_window: Some(Window {
                title: "Jigsaw Puzzle Game".to_string(),
                canvas: Some("#bevy".to_string()),
                fit_canvas_to_parent: true,
                prevent_default_event_handling: true,
                ..Default::default()
            }),
            ..default()
        }));

		app.add_plugins((ui::plugin, generator::plugin));
    }
}

fn main() {
    App::new().add_plugins(DefaultPlugins).run();
}

/// ui plugin

pub(super) fn plugin(app: &mut App) {
    app.add_systems(Startup, setup);
}

/// 生成2D相机
fn setup(mut commands: Commands) {
    commands.spawn(Camera2d);
}

Schedule调度

Bevy 是ECS(Entity-Component-System)架构。大部分的业务逻辑都是在System里实现

app.add_systems(Startup, setup_generator);

上面的代码设置Bevy进入Startup调度时，执行setup System. Bevy的主要Schedule

impl Default for MainScheduleOrder {
    fn default() -> Self {
        Self {
            labels: vec![
                First.intern(),
                PreUpdate.intern(),
                RunFixedMainLoop.intern(),
                Update.intern(),
                SpawnScene.intern(),
                PostUpdate.intern(),
                Last.intern(),
            ],
            startup_labels: vec![PreStartup.intern(), Startup.intern(), PostStartup.intern()],
        }
    }
}

可以看到Bevy启动时按顺序调用PreStartup、Startup、PostStartup三个Schedule一次，然后每个Tick按顺序调用 First、PreUpdate、 RunFixedMainLoop、Update、SpawnScene、PostUpdate、Last.
我们的业务逻辑一般写在Update里。

加载图片

fn setup_generator(mut commands: Commands, asset_server: Res<AssetServer>) {
    let image_path = "raw.jpg";
    let generator = JigsawGenerator::from_path(image_path, 9, 6).expect("Failed to load image");

    // load image from dynamic image
    let image = asset_server.add(Image::from_dynamic(
        generator.origin_image().clone(),
        true,
        RenderAssetUsages::RENDER_WORLD,
    ));

    commands.spawn((Sprite::from_image(image), BoardBackgroundImage));
    commands.insert_resource(JigsawPuzzleGenerator(generator));
}

#[derive(Debug, Resource, Deref, DerefMut)]
pub struct JigsawPuzzleGenerator(pub JigsawGenerator);

/// 背景图片标记
#[derive(Component)]
pub struct BoardImageMarker;

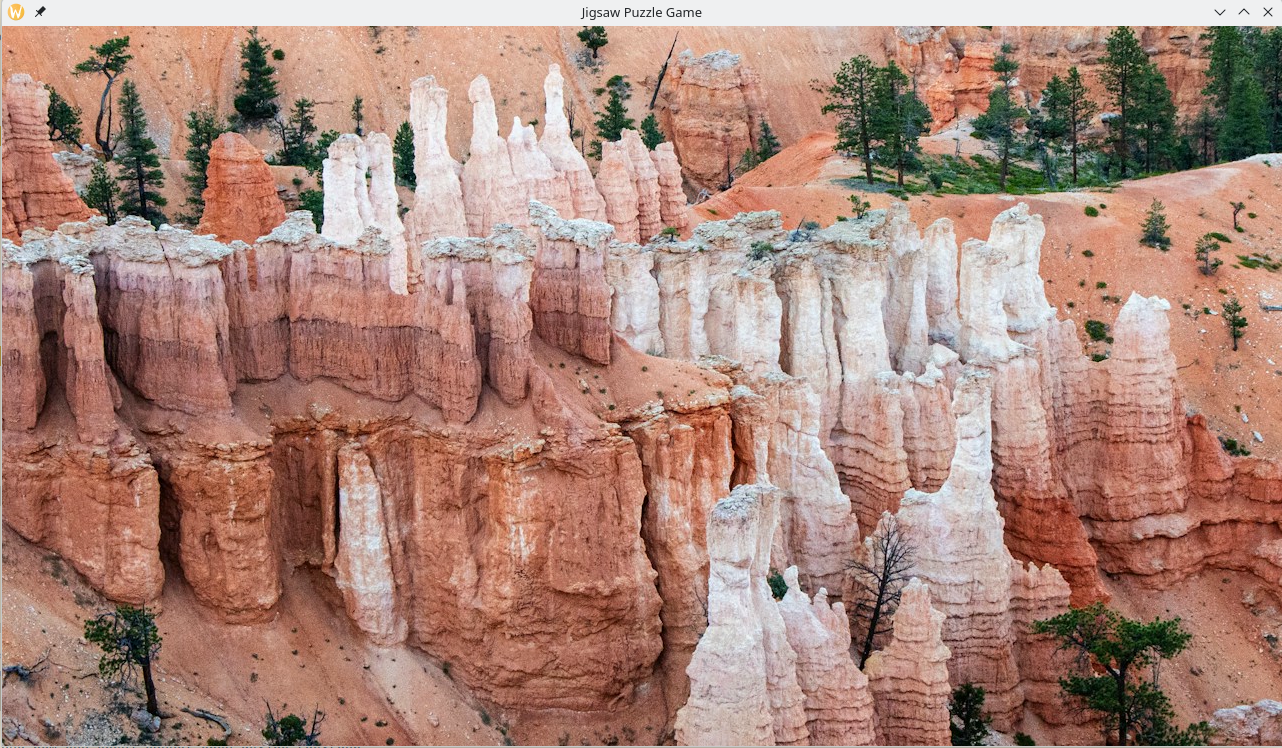

程序启动后加载图片并将我们的拼图生成器通过Commands存入Resource(Resource是Bevy标记存放全局唯一数据的地方). 将原始图片载入精灵图(Sprite)并放入世界,显示结果如下：可以看到由于窗口比图片小，所以只显示了一部分图片。因此我们调整一下相机，看全图片。

调整相机投影

app.add_systems(Update, adjust_camera_on_added_sprite);

fn adjust_camera_on_added_sprite(
    sprite: Single<Entity, Added<BoardBackgroundImage>>,
    mut camera_2d: Single<&mut OrthographicProjection, With<Camera2d>>,
    window: Single<&Window>,
    generator: Res<JigsawPuzzleGenerator>,
    mut commands: Commands,
) {
    let window_width = window.resolution.width();
    let image_width = generator.origin_image().width() as f32;
    let scale = image_width / window_width;
    let target_scale = scale / 0.8;
    camera_2d.scale = target_scale;
    commands.entity(*sprite).insert(Visibility::Hidden);
}

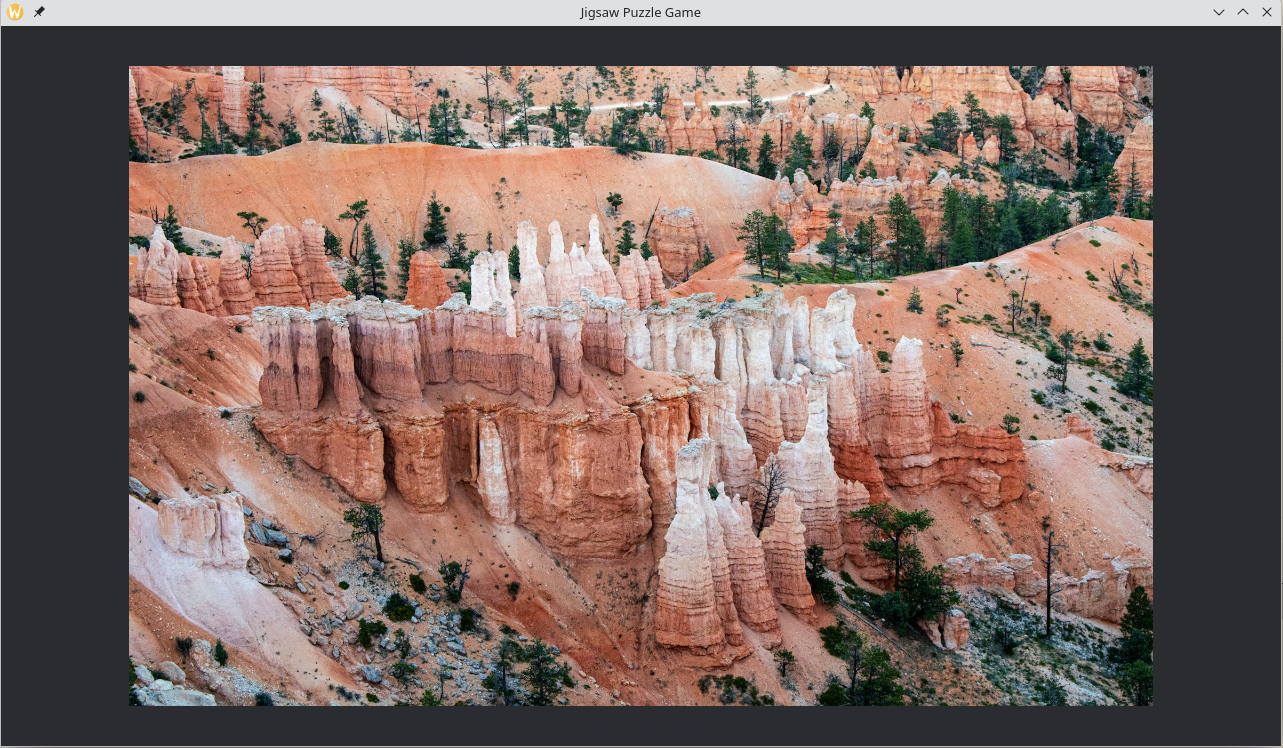

这个System虽然挂在Update下面, 但只会在图片挂载的时候运行一次。原因是这条Query sprite: Single<Entity, Added<BoardBackgroundImage>> 当BoardBackgroundImage这个component刚刚添加到world时, 此query才会成功查询到一条数据。此时根据图片和窗口的宽度，换算出一个缩放比例应用到相机上。在Bevy里2D相机是正交投影，所以用single query查询出OrthographicProjection,并修改投影的scale值。此时效果如下：最后在图片的entity下插入Visibility::Hidden这个Component，将图片隐藏。准备进行后续的图片分割。

生成拼图块

app.add_systems(
    PostUpdate,
    spawn_piece.run_if(resource_changed::<JigsawPuzzleGenerator>),
)

这里是一种新的system运行控制方法，它的条件是当JigsawPuzzleGenerator这个Resource的值变动时，才运行spawn_piece 按照底图的方式生成块的Sprite

fn spawn_piece(
    mut commands: Commands,
    generator: Res<JigsawPuzzleGenerator>,
    asset_server: Res<AssetServer>,
) {
    if let Ok(template) = generator.generate() {
        for piece in template.pieces.iter() {
            let image = asset_server.add(Image::from_dynamic(
                template.crop(piece),
                true,
                RenderAssetUsages::RENDER_WORLD,
            ));

            commands.spawn(Sprite::from_image(image));
        }
    };
}

运行后，卡了很久才出现窗口原因是切一张图要耗时0.2～0.3秒， 9x6=54张图按队列生成就要卡很久，我们将切图这一步放到异步任务里去做。

异步生成拼图图片

app.add_systems(
    Update,
    (
        spawn_piece.run_if(resource_changed::<JigsawPuzzleGenerator>),
        handle_tasks,
    ),
);

fn spawn_piece(mut commands: Commands, generator: Res<JigsawPuzzleGenerator>) {
    if let Ok(template) = generator.generate(false) {
        let thread_pool = AsyncComputeTaskPool::get();
        for piece in template.pieces.iter() {
            let template_clone = template.clone();
            let piece_clone = piece.clone();
            let entity = commands.spawn(JigsawTile { index: piece.index }).id();

            let task = thread_pool.spawn(async move {
                let cropped_image = template_clone.crop(&piece_clone);
                let mut command_queue = CommandQueue::default();

                command_queue.push(move |world: &mut World| {
                    let asset_server = world.resource::<AssetServer>();
                    let image = asset_server.add(Image::from_dynamic(
                        cropped_image,
                        true,
                        RenderAssetUsages::RENDER_WORLD,
                    ));
                    world
                        .entity_mut(entity)
                        .insert(Sprite::from_image(image))
                        .remove::<CropTask>();
                });

                command_queue
            });

            commands.entity(entity).insert(CropTask(task));
        }
    };
}

fn handle_tasks(mut commands: Commands, mut crop_tasks: Query<&mut CropTask>) {
    for mut task in &mut crop_tasks {
        if let Some(mut commands_queue) = block_on(future::poll_once(&mut task.0)) {
            commands.append(&mut commands_queue);
        }
    }
}

上面的代码使用了Bevy的异步线程池, 将切图→创建Sprite等步骤放到CommandQueue里，当handle_tasks的里获取到返回值后，将queue重放执行。

移动拼图

先解释以下Bevy的坐标系

2D X轴从左往右(右为正方向) Y轴从下到上(上为正方向) Z轴从从远到近(朝你的眼睛/屏幕方向是正方向) 默认原点(x=0.0, y=0.0)是窗口的中心点

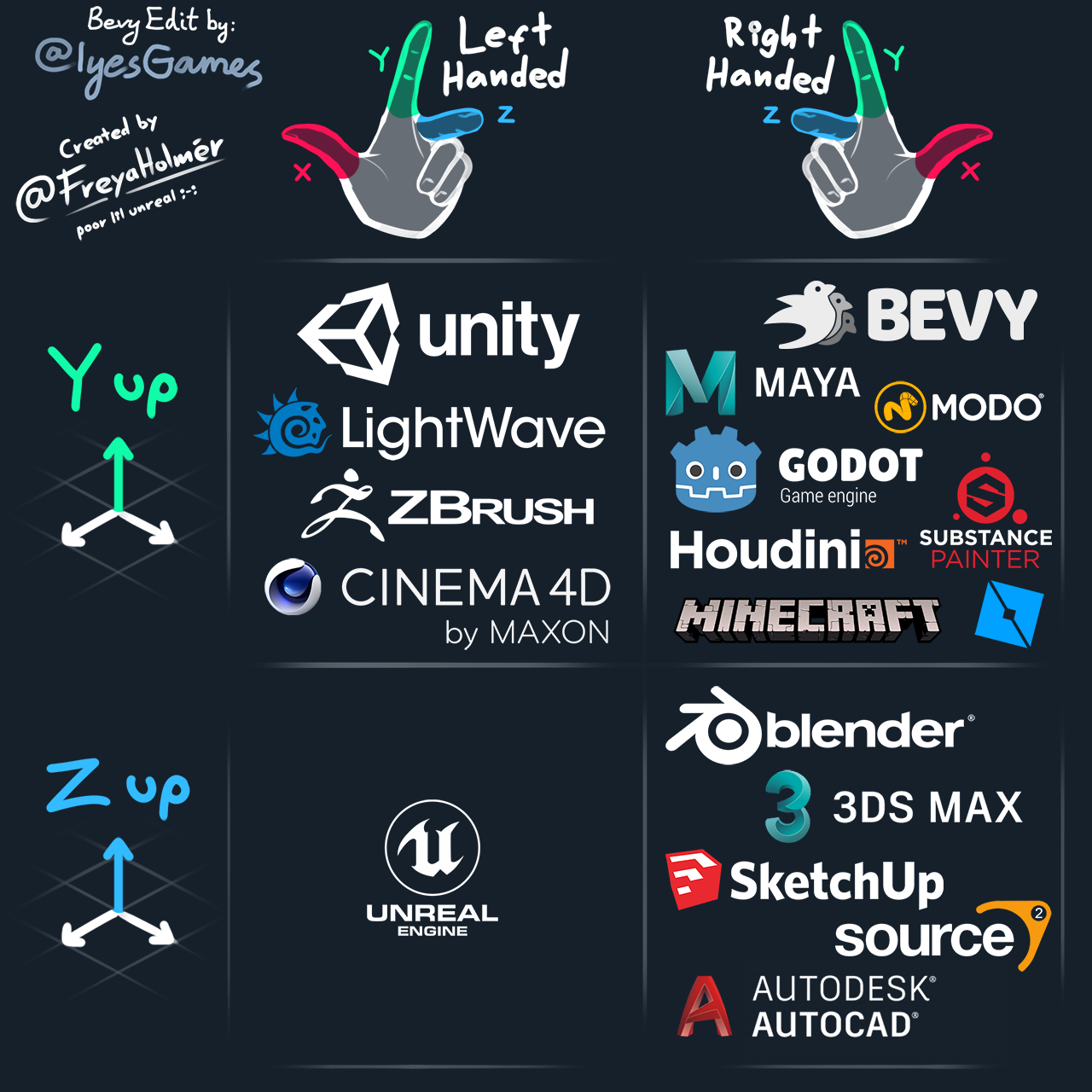

3D 记住一点，Bevy使用右手坐标系， Y轴朝上，Z轴朝屏幕

首先我们修改一下Sprite的生成方式，将锚点改为左上角

let sprite = Sprite {
    image,
    anchor: Anchor::TopLeft,
    ..default()
};

随机生成拼图块的左上角的坐标，保持在窗口里

let resolution = &window.resolution;
let calc_position = random_position(&piece, resolution.size(), camera.scale);
let entity = commands
    .spawn((
        JigsawTile { index: piece.index },
        Transform::from_xyz(calc_position.x, calc_position.y, 1.0),
    ))
    .id();

fn random_position(piece: &JigsawPiece, window_size: Vec2, scale: f32) -> Vec2 {
    let window_width = window_size.x / 2.0 * scale;
    let window_height = window_size.y / 2.0 * scale;
    let min_x = -window_width + piece.crop_width as f32;
    let min_y = -window_height + piece.crop_height as f32;
    let max_x = window_width - piece.crop_width as f32;
    let max_y = window_height - piece.crop_height as f32;

    let mut rng = rand::thread_rng();
    let x = rng.gen_range(min_x..max_x);
    let y = rng.gen_range(min_y..max_y);
    Vec2::new(x, y)
}

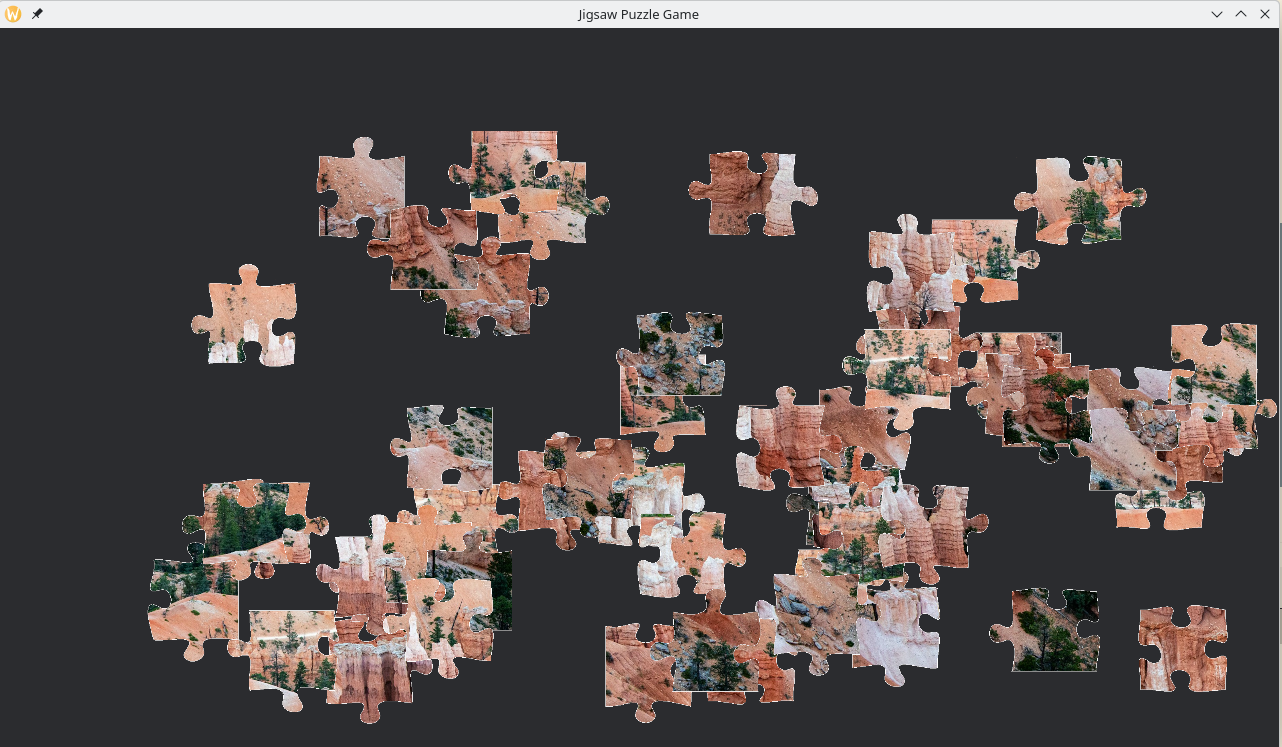

注意，我们在之前缩放了窗口，所以计算坐标时需要乘上缩放比例。随机效果如下:
